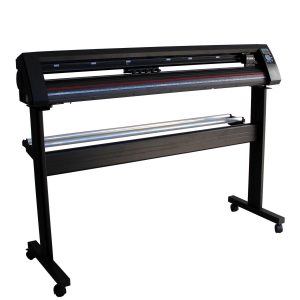

Contour Cutting Plotter

Introduction to the Contour Cutting Plotter

Jeewa Plastic’s Contour Cutting Plotter delivers precision die-cutting and print-and-cut workflows in 2 ft and 4 ft configurations. You’ll achieve seamless contour cuts around printed graphics, labels, and decals. Its sturdy steel frame and high-torque motors handle long production runs with consistent accuracy.

High-Precision Registration-Mark Tracking

The built-in optical sensor reads registration marks printed alongside your designs. It adjusts blade paths in real time, so each cut follows your artwork exactly. Consequently, you eliminate wasted media and rework, whether you trim vinyl graphics or heat-transfer films.

Robust Media Handling System

This plotter uses dual pinch rollers to grip media securely. You can load rolls or sheets up to 4 ft wide. The floating carriage maintains even pressure across the blade, preventing slippage and misfeeds. As a result, you achieve clean edges on both thin films and thicker label stocks.

Adjustable Cutting Force and Speed

You adjust blade pressure from 50 gf to 350 gf for materials ranging from delicate paper to heavy card. Cutting speeds reach up to 600 mm/s while retaining ±0.1 mm accuracy. This flexibility lets you balance throughput and cut quality for each job.

Intuitive Control Interface

The user-friendly control panel features a bright LCD and tactile keys. You select media type, set registration-mark sensitivity, and fine-tune blade offset in seconds. The plotter stores up to ten job presets for quick recall, minimizing setup time on repeat orders.

Seamless Software Integration

This contour cutter supports popular design applications, including Adobe Illustrator and CorelDRAW. You send vector paths directly via USB or Ethernet. The included desktop software offers nesting, mirror cutting, and auto-registration features to optimize material usage.

Versatile Application Scenarios

• Signage Shops: Trim graphics to fit complex shapes and custom fixtures.
• Label Production: Batch-cut barcoded and serialized labels with pinpoint accuracy.
• Apparel Decoration: Contour-cut heat-transfer vinyl for t-shirts and team uniforms.
• Packaging Prototypes: Craft window labels and custom dielines for mock-ups.

Easy Maintenance and Support

Routine upkeep takes just minutes: clean the sensor window, lubricate rail bearings, and replace blades effortlessly via the quick-release holder. Jeewa Plastic backs every machine with a one-year warranty and offers responsive technical support to keep you running.

Why Choose Jeewa Plastic’s Contour Cutting Solution?

By combining precise registration-mark tracking, robust media handling, and flexible software integration, this plotter streamlines your cutting tasks from start to finish. You’ll save time, reduce waste, and deliver professional results—every single job.
